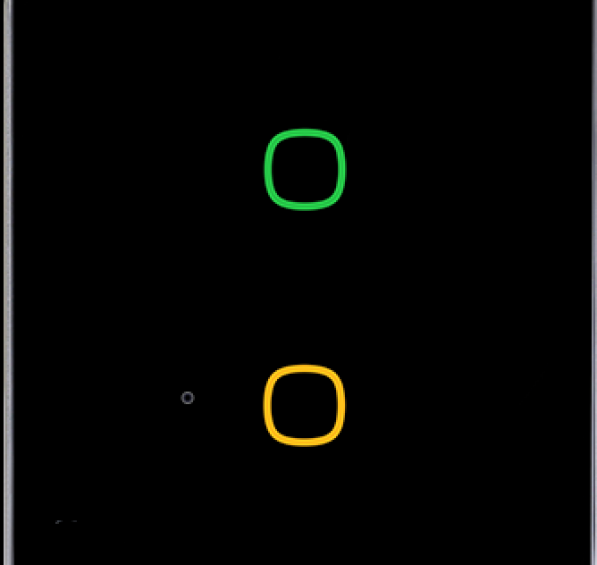

iTouch 2 Buttons Touch Panel

The iTouch 2 Buttons Touch Panel is a smart button panel based on Zigbee 3.0 communication protocol, which has 2CH 5A relay channels. Touch buttons, RGB backlights and vibration feedback functions are available. With the support of the gateway, the panel button functions can be customized through APP, such as smart scenes, lighting devices, etc., bringing you an evolved home. Input voltage: 100-240VAC (50/60Hz) Standby power consumption: ≤2W Output channel: 2CH, 1100W/CH, 220VAC Communication: Zigbee 3.0 Wireless transmission power: +10dbm Indoor communication distance (barrier free): ≤30m Working frequency: 2.4GHz Working temperature: -5℃~45℃ Working relative humidity: ≤90%RH, no condensation Dimensions: 86×86×37.7(mm) Net weight: 167g Housing material: Glass, metal frame Installation: Wall box Protection rating (Compliant with EN 60529): IP20
