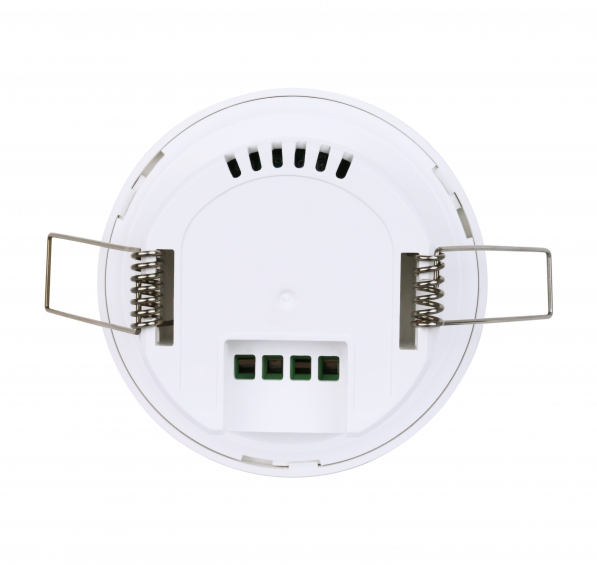

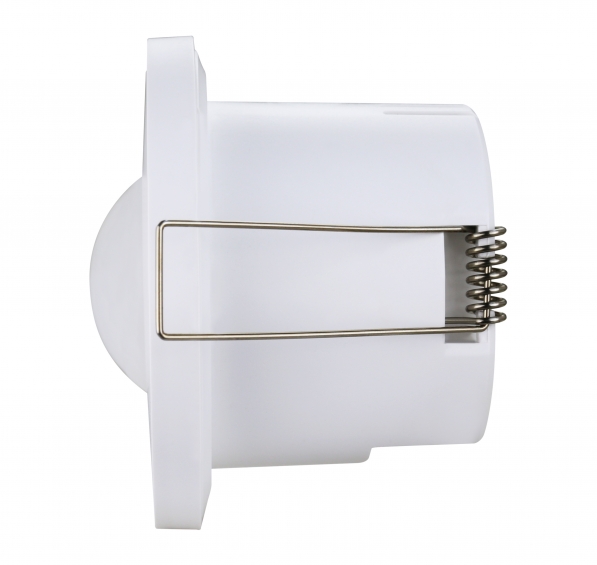

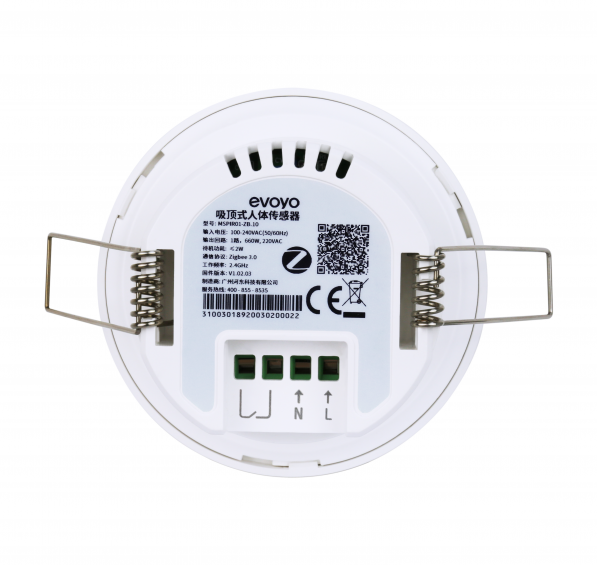

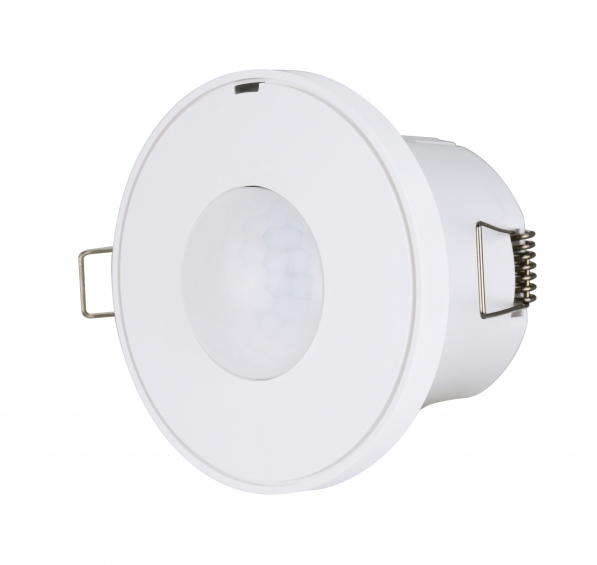

Ceiling-mounted Motion Sensor

Ceiling-mounted Motion Sensor adopts Zigbee 3.0 communication protocol to detect the movement of the human body through infrared induction, and detects the movement of the human body in real time within the human body sensing range. The sensor has a built-in illuminance sensor, which can judge the bright ness of the indoor light, set the ambient brightness value that triggers the light to turn on, and provide more information for smart lighting. With built-in 1CH 660W relay output channel, the sensor is applicable for ceiling lamps in warehouses, garages, workshops, corridors, stairways, etc. The Ceiling-mounted Motion Sensor can be configured through the APP to realize logical automation functions and scene linkage. (Note: The sensor should be used in conjunction with specific HDL gateway.) Input: 100-240V~ 50/60Hz, 7A MAX Output channel: 1CH, 660W, 230VAC Communication: Zigbee 3.0 PIR detection range: Φ7.5m (Installation height: 3m) Wireless transmission power: +10dbm Indoor communication distance (barrier free): ≤30m Working frequency: 2.4GHz Working temperature: -5℃~45℃ Working relative humidity: ≤90%RH, no condensation Dimensions: Φ76.5×Φ57.2×61.4 (mm) Net weight: 78g Housing material: PC, iron Installation: Ceiling-mounted Protection rating (Compliant with EN 60529): IP20
