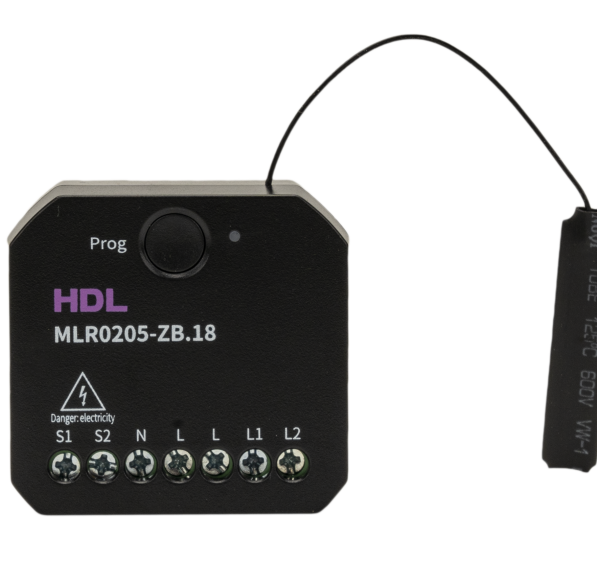

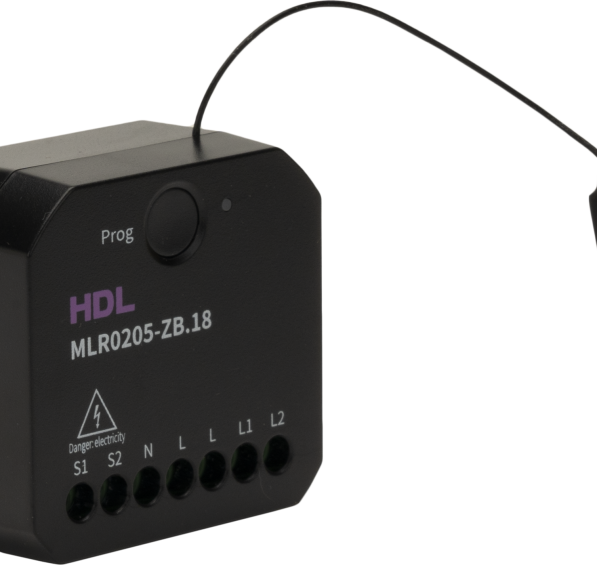

2CH 5A Flush-mounted Switch Actuator

2CH 5A Flush-mounted Switch Actuator ，Zigbee 3.0, 2CH, 5A/Ch relay output , magnetic latching relays; 2-channel high- voltage dry contact input. which can be interconnected with qualified Zigbee devices of other brands. V2.0 is smaller than V1.0, which can meet more severe installation conditions, and can be installed with wall box of the Chinese national standard. It has three relay output channels, each channel has a maximum current of 10A, and the relays are all magnetic latching relays; it has 4 channels of weak current dry contact inputs and therefore can be connected to weak current dry contact panels/switches; it has 4 channels of LED indicator signal outputs. Item Standby Power consumption Parameter ≤1.5W Input voltage 100 - 240V AC, 50/60Hz Dry contact input 4CH LED output 4CH, 10mA/CH Communication protocol Zigbee 3.0 Wireless transmit power <10dbm Wireless receive sensitivity Output channel Indoor communication distance (barrier-free)-103dbm 2CH, resistive load: 5A/CH Capacitive load: 2.7A/CH ≤50m Working frequency 2.4GHz Working temperature-5℃ ~ 45℃ Working relative humidity ≤90%RH, non-condensed
