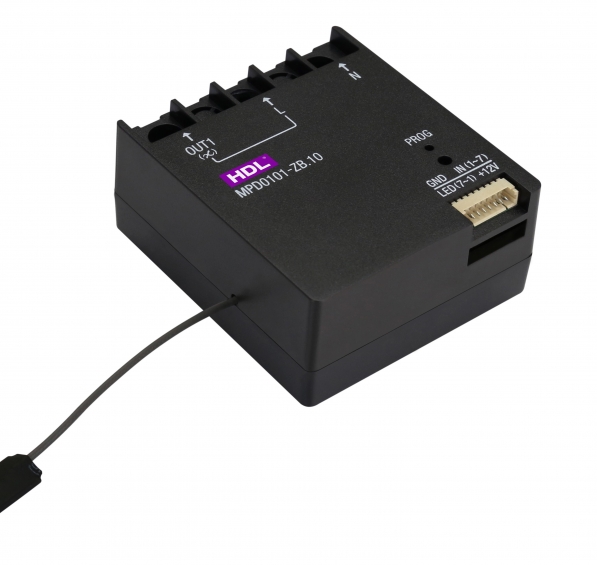

1CH Flush-mounted Dimming Actuator

The 1CH Flush-mounted Dimming Actuator is a control module based on the Zigbee 3.0 communication protocol. It connects the home lighting devices with the smart system, such as chandeliers, bedside lamps. The dry contact port can be connected to the dry contact push switch or the dry contact smart panel with backlight to access the system without protocol integration. Input voltage: 100-240VAC(50/60Hz) Output channel: 1CH, 330W, 220VAC Standby power consumption: ≤1.5W Dry contact: 7CH dry contact input LED: 7CH LED output, 10mA/CH Communication: Zigbee 3.0 Wireless transmission power: +10dbm Wireless sensitivity: -103dbm Indoor communication distance (barrier free): ≤50m Working frequency: 2.4GHz Working temperature: -5℃~45℃ Working relative humidity: ≤90%RH, no condensation Dimensions: 56×50×24(mm) Net weight: 62g Housing material: Flame retardant PC Installation: Groove installation, wall box installation Protection rating (Compliant with EN 60529): IP20
