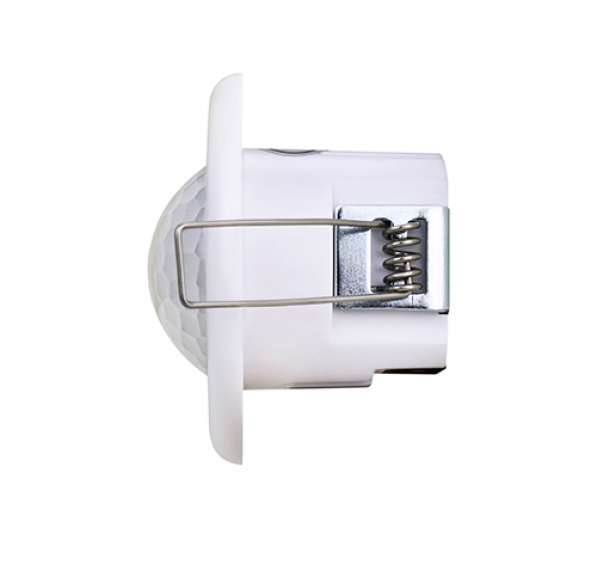

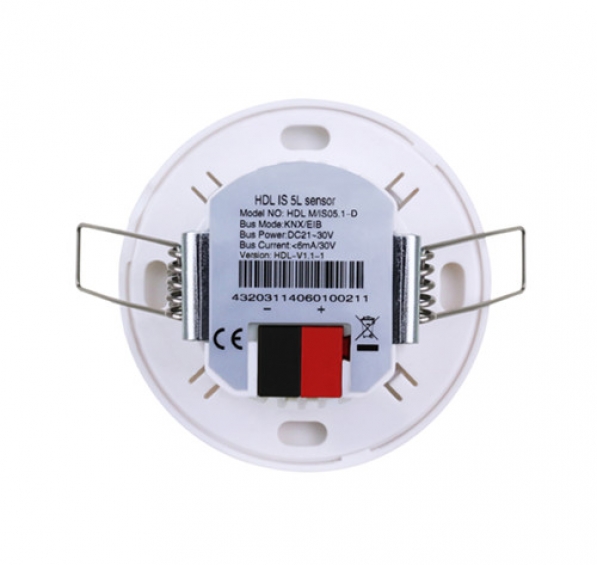

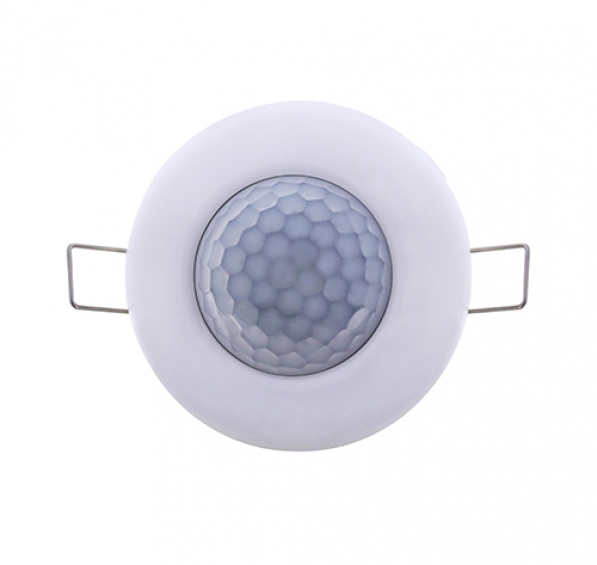

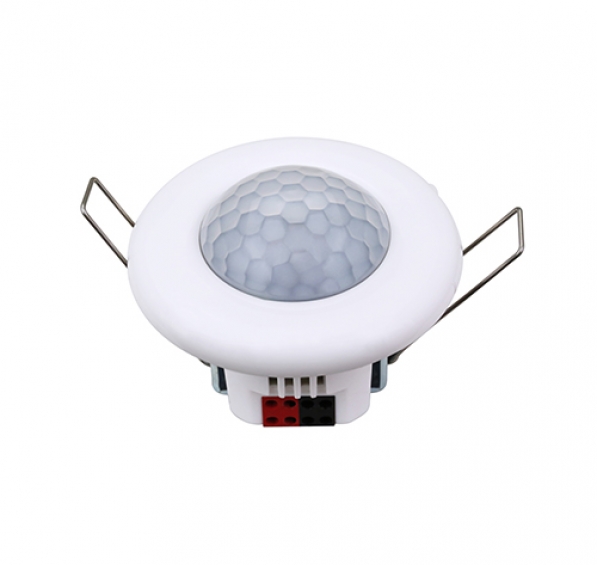

KNX Mini PIR & Lux Sensor

KNX Mini PIR & Lux Sensor is a multi-function sensor that contains PIR sensor, temperature sensor, Lux sensor and external telegram. 5 logical blocks are available and each block contains 10 object outputs. Logical relations AND, OR can be set and single mode and master/slave mode are supported. ■ With 2CH lighting control, 4 sections of brightness and delay time can be set in dimming output. With gradually dimming effect, the sensor supports automatic or semiautomatic mode. Telegram locking/unlocking and delay time can be set. Sending on/off telegram can be set when locking and unlocking. ■ With 2CH constant brightness control, dimming values and forced operation can be set. ■ The sensor has 5 logic blocks and each block contains 10 object outputs. Telegram locking/unlocking and delay time can be set. Sending on/off telegram can be set when locking and unlocking. ■ Control types: Switch control, Absolute dimming control, Shutter control, Alarm control, Percentage control , Sequence control, Scene control, String(14 bytes) control, Threshold control, Logic combination control. ■ Logic inputs: PIR sensing status, brightness value, temperature and external telegrams. ■ 2 logical relations: AND, OR ■ 2 working modes: Single mode and master / slave mode. ■ The logic validity can be set by external telegram. Basic Parameters Working voltage 21~30V DC Working current 5mA/30V DC Communication KNX Cable diameter of KNX terminal 0.6 - 0.8mm PIR detection range Φ8m (Installation height:3m) External Environment Working temperature -5℃~45℃ Working relative humidity ≤90% Storage temperature -20℃~60℃ Storage relative humidity ≤93% Specifications Dimensions Φ63×46.6 (mm) Net weight 43g Housing material ABS,PC, iron Installation Ceiling-mounted/Flush-mounted Protection rating (Compliant with EN 60529) IP20
