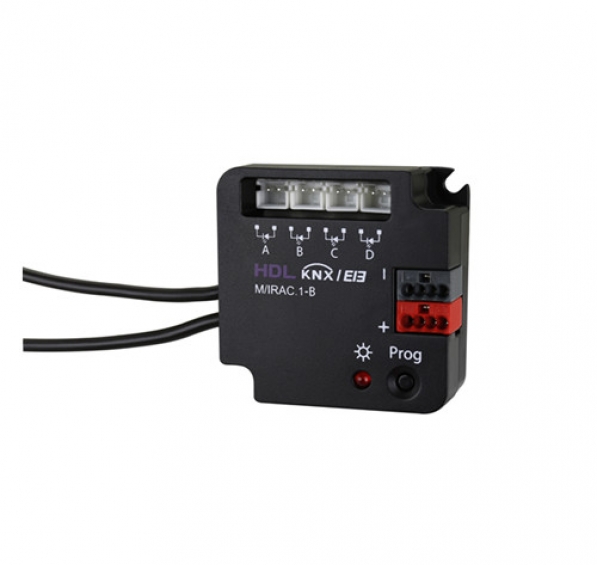

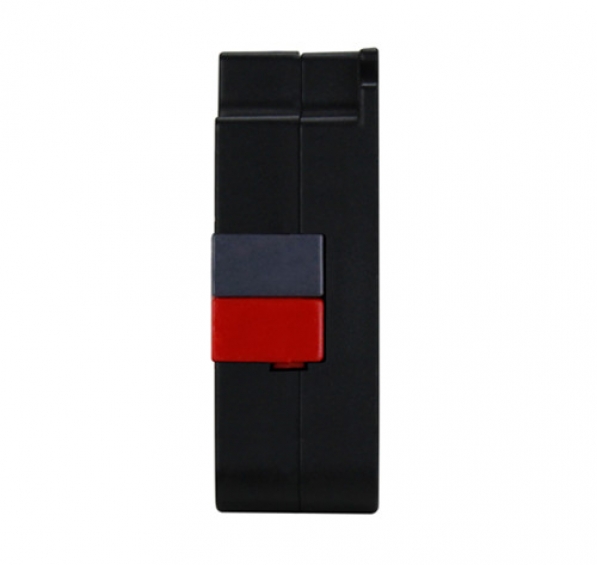

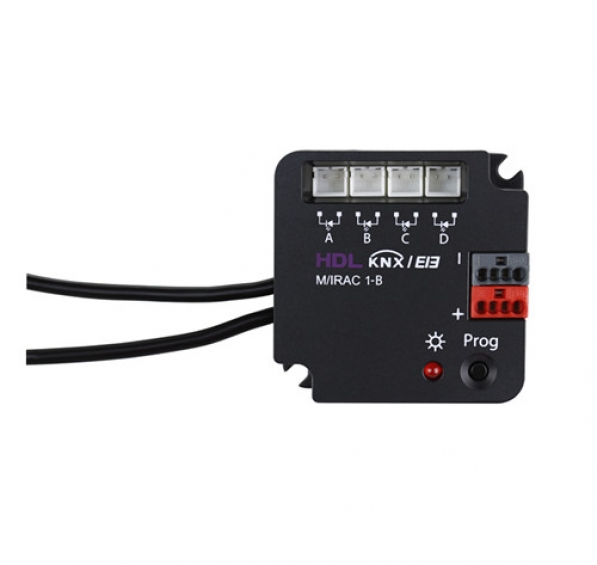

KNX Infrared Emitter

KNX Infrared Emitter is one of HDL KNX/EIB series products. The module can store up to 960 infrared codes. The first 150 infrared codes are used for general control, for example, TV, DVD, and other infrared receiving devices, and the latter 810 infrared codes are used for controlling AC of any brand. ■ Various control modes: Single emitting control, Repeat emitting control, Sequence emitting control ■ AC control types: ON/OFF control, Temperature control, Cooling/ Heating mode control, Fan speed control, Swing control ■ Supports current detection with current up to 2A ■ After learning, obtaining and downloading the infrared codes through infrared learning page of KNX Assistant Software and IR Learner, the Infrared Emitter can control TV, DVD, air conditioner etc. ■ After the current detection function setting, the module can confirm the ON/OFF status of the device. This function mainly aims at the circumstance that one IR code controls the ON/OFF status of the device. Basic Parameters Working voltage 21~30V DC Working current 10mA/30V DC Transmitting carrier wave frequency 38kHz±20% Emission distance 7m Current detection <2a Communication KNX/EIB Cable diameter of KNX terminal 0.6 - 0.8mm External Environment Working temperature -5℃~45℃ Working relative humidity ≤90% Storage temperature -20℃~60℃ Storage relative humidity ≤93% Specifications Dimensions 45mm×45mm×16mm Net weight 60g Housing material ABS Installation Screw installation Protection rating (Compliant with EN 60529) IP20
