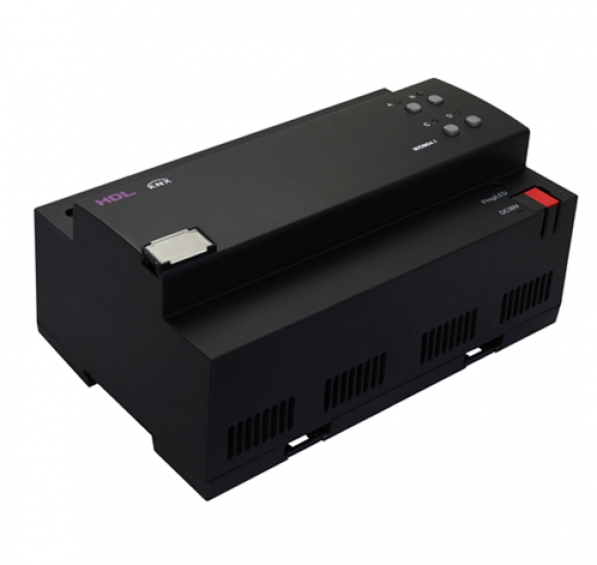

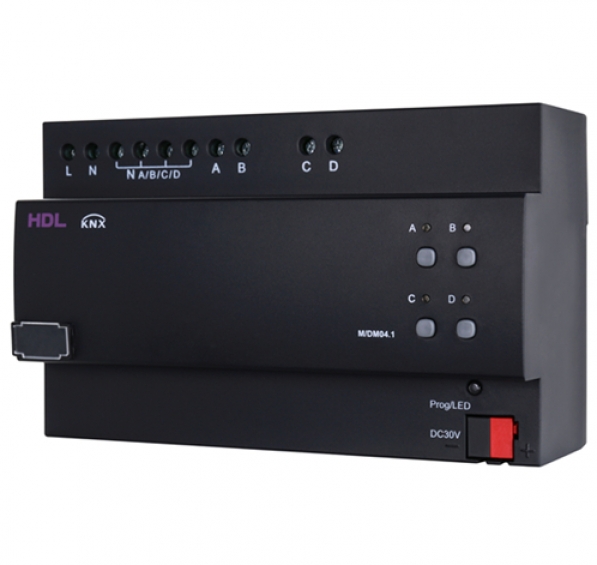

KNX 4CH 1.5A MOSFET Dimming Actuator

KNX MOSFET Dimming Actuator has 3 types (2CH 3A, 4CH 1.5A, and 6CH 1.5A) of output circuits, which support multiple application functions. This series of dimming actuators are in full compliance with European Safety Standards and KNX standard protocol. ■ 3 types of output circuits: 2, 4 and 6 channels of dimming actuator. ■ Supports leading and trailing edge mode. It is recommended to adopt the leading edge dimming mode for inductive loads, and the trailing edge dimming mode is recommended for other load types. ■ Parallel channels can form heavy current output. ■ Manual control: Manual switching, and dimming for each channel. ■ Application functions: Statistics ON time, Status response, Status recovery, Short-circuit protection, Overload protection, Overheat protection, Staircase light, Flashing light, Scene control, Scene dimming, Read temperature, Overheat alarm, Dimming higher limit control, Dimming lower limit control, Sequence control, Heating control (PWM). Basic Parameters Working voltage： 21~30V DC Working current： 20mA/30V DC Input voltage： AC100V/240V AC (50/60Hz) Communication： KNX Cable diameter of KNX terminal： 0.6 - 0.8mm User control： Manual operation for each channel Line in/Line out terminals： 2.5 - 4mm2 Output channel：HDL-M/DM04.1: 4CH, 1.5A/CH Total output current：HDL-M/DM04.1: 6A Max. External Environmental Working temperature： -5℃~45℃ Working relative humidity： ≤90% Storage temperature： -20℃~60℃ Storage relative humidity： ≤93% Specifications Dimensions： 90×144×64(mm) Net weight：HDL- M/DM04.1: 412g Housing material： Flame-retardant nylon Installation： 35mm DIN rail installation Protection rating (Compliant with EN 60529)： IP20
