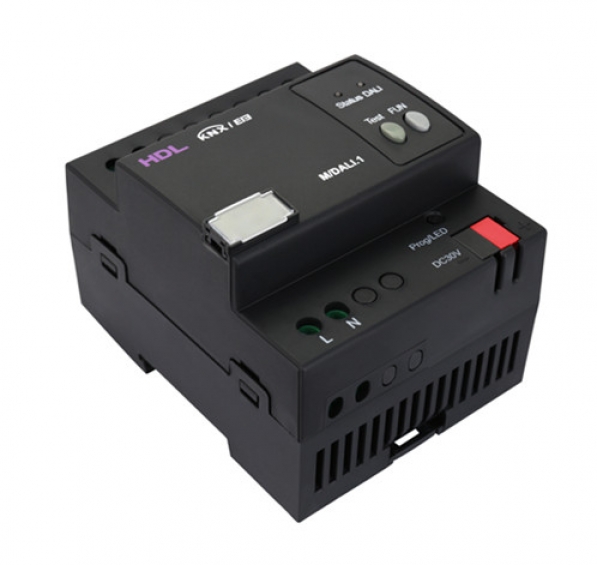

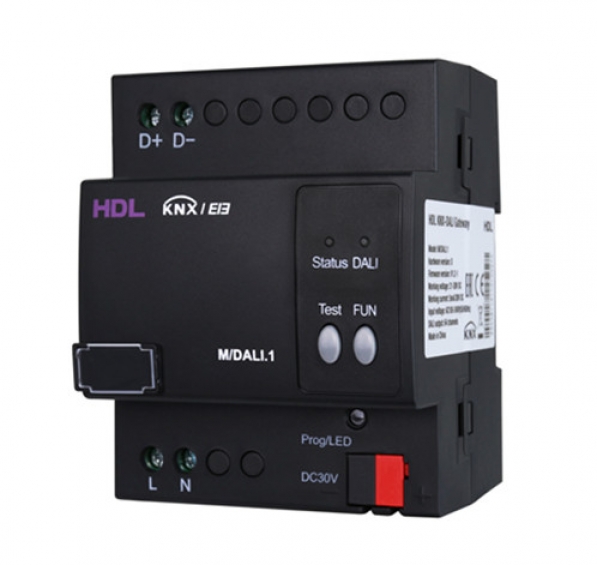

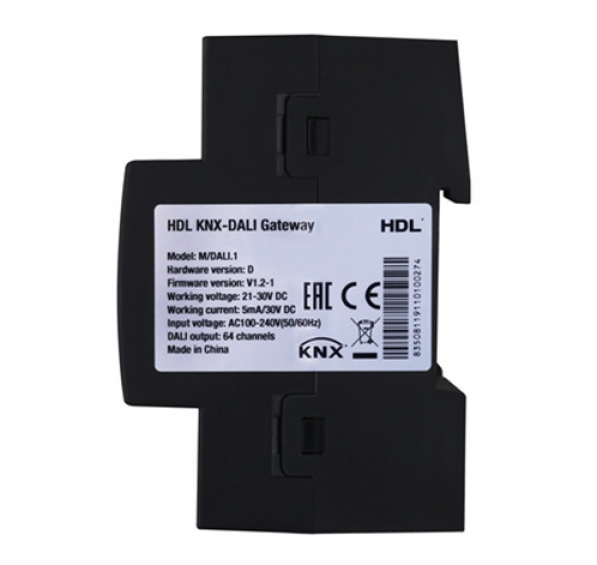

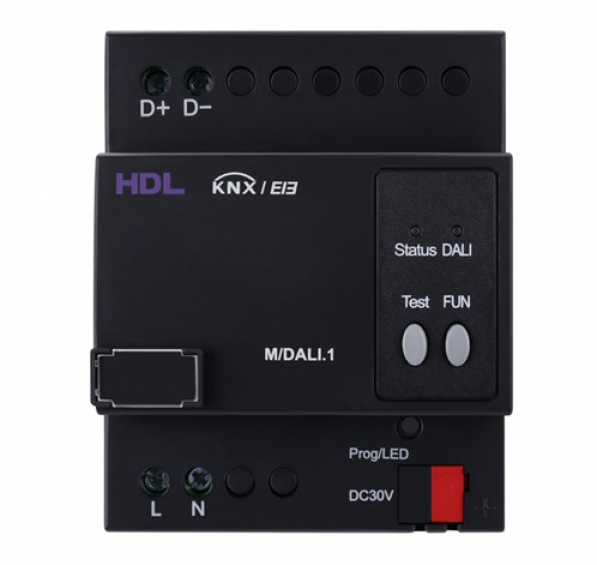

KNX DALI Gateway

With built-in DALI power supply and a single DALI Bus, KNX-DALI Gateway can be connected to up to 64 DALI devices. Real-time failure detection enables the gateway to detect ballast failure and lamp failure etc. ■ Real-time failure detection for ballasts and lamps, etc. ■ Target control: Broadcast control, Channel control, Group control, Scene control, Staircase light control, Sequence control, Emergency light control ■ Each channel and group supports Switch ON/OFF, Relative dimming, Absolute dimming, Status response function. ■ In conjunction with HDL KNX Assistant Software, DALI Gateway enables address management and assignment of DALI ballast. ■ Group scene control supported, which can be configured and managed via HDL KNX Assistant Software. ■ Color temperature control function supported, which can be applied to broadcast, channel, group and scene control of DT8 type color temperature control ballasts. ■ Online update. Basic Parameters Working voltage 21~30V DC Working current 5mA/30V DC Input voltage AC100-240V (50/60Hz) DALI output 64 channels Communication KNX Cable diameter of KNX terminal 0.6 – 0.8mm External Environment Working temperature -5℃~45℃ Working relative humidity ≤90% Storage temperature -20℃~60℃ Storage relative humidity ≤93% Specifications Dimensions 72mm×90mm×64mm Net weight 241g Housing material Nylon Installation 35mm DIN rail installation Protection rating (Compliant with EN 60529) IP20
