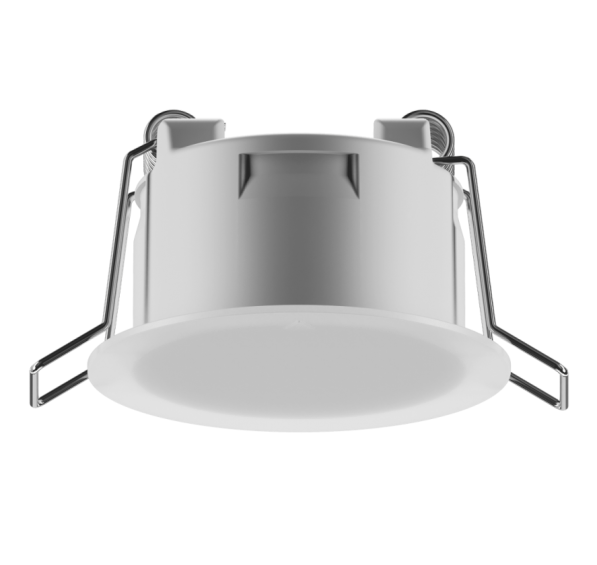

Compact MiNi occupancy sensor, 0-10V

Series: 0/1-10V series of sensors MiNi 24Ghz Radar 360 Presence And Motion Sensor (0/1-10V) Highly sensitive microwave motion sensor with 360° field of view operating at 24 GHz. Output signal to the bus 0-10V. Description It supports lighting control via the 0-10V interface, which allows you to adjust the brightness of the luminaires depending on the movement and light level. Ideal for offices, conference rooms, warehouses and retail spaces. Advantages: 360° view – full coverage with no blind spots. 24 GHz microwave technology – accurate motion detection even with minimal activity. Compatible with 0-10V – smooth dimming of light in automatic mode. Compact design – easy to integrate into the interior. Flexible parameter settings – adjust sensitivity, delay time and light level. Characteristics Operating Humidity: <95% Weight: 48 gr Operating temperature: -20~ 45°C Communication Method: 0-10/1-10V Power Adapter: Included Brand: Creatrol Installation Height: 2-4 meters Detection Mode: 24 GHz Detection Distance: 1.5 - 4.5 meters Detection sensitivity: 0-100% Light sensor: 0-32000 LUX Product Size: 43*25mm Hole Size: φ35mm External power: AC100~240V(50~60Hz) or 12~30VDC<0.5W Series: DALI and 0/1-10V φ43*25mm (Cut φ35mm)
